TCP reassembling and also difference in WS 2.4.2 and WS_2.5_Master in qt_ui

["Robert Grange" <robert.grange () bluewin ch>]

Hi,



I've some problems with the tcp reassembling (look at the attached capture
file)



Frame

1                    MQ Request

2                    1st tcp segment of a reassembled PDU

3                    2nd tcp segment of a reassembled PDU. Could be decoded
with MQ dissector

4                    Single segment, decoded with MQ Dissctor

5                    ACK

6                    MQ Request

7                    1st tcp segment of a reassembled PDU

8                    2nd tcp segment of a reassembled PDU. Could be decoded
with MQ dissector

9                    Single segment, decoded with MQ Dissctor

10                 ACK

11                 MQ Request

12                 Out of order segment. 2nd tcp segment of a reassembled
PDU (could not be decoded through MQ Dissectror)

13                 Single segment (could not be decoded through MQ
Dissectror)

14                 DUP ACK

15                 DUP ACK

16                 1st tcp segment of a reassembled PDU (but could not be
relied to the 2nd part of the pdu in frame 12, so could not be decoded
through MQ Dissectror

17                 ACK

18                 MQ Request

19                 1st tcp segment of a reassembled PDU

20                 2nd tcp segment of a reassembled PDU. (Could not be
decoded with MQ dissector)

21                 Single segment, decoded with MQ Dissector (Could not be
decoded with MQ dissector)

22                 ACK

23                 Etc .



Frame 1 to 10 are decoded correctly

Frame 11 to 17 could not be decoded (I can understand this as segment
arrives in wrong order)

For next frames 18 . , the reassembling did no more work, although it is new
request/response. Why ?

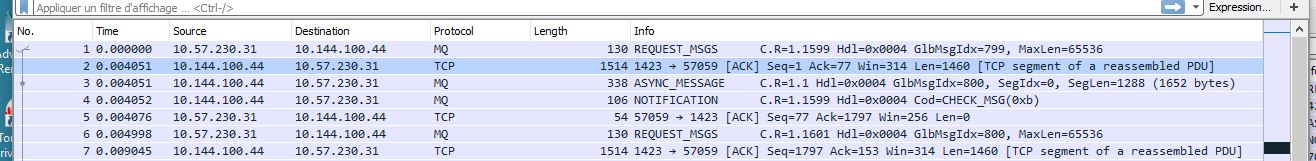

Another point also between V2.4.2 and V2.5-master in ui

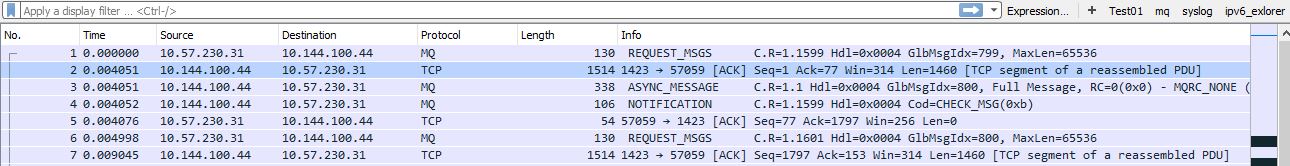

It seems that on master branch, the ticks and point, displayed on the Column
No, to specify which frame is acknowledged by the selected frame is no more
displayed in V2.5-master branch .

And also a point to show which frames are linked together when re-assembling
the tcp frames .

See attached screen shots



Robert
